Flat Anchorage
Category:
Prestressed Anchor & Wedge
Keywords：
flat
Flat Anchorage
Post Tensioning
Description

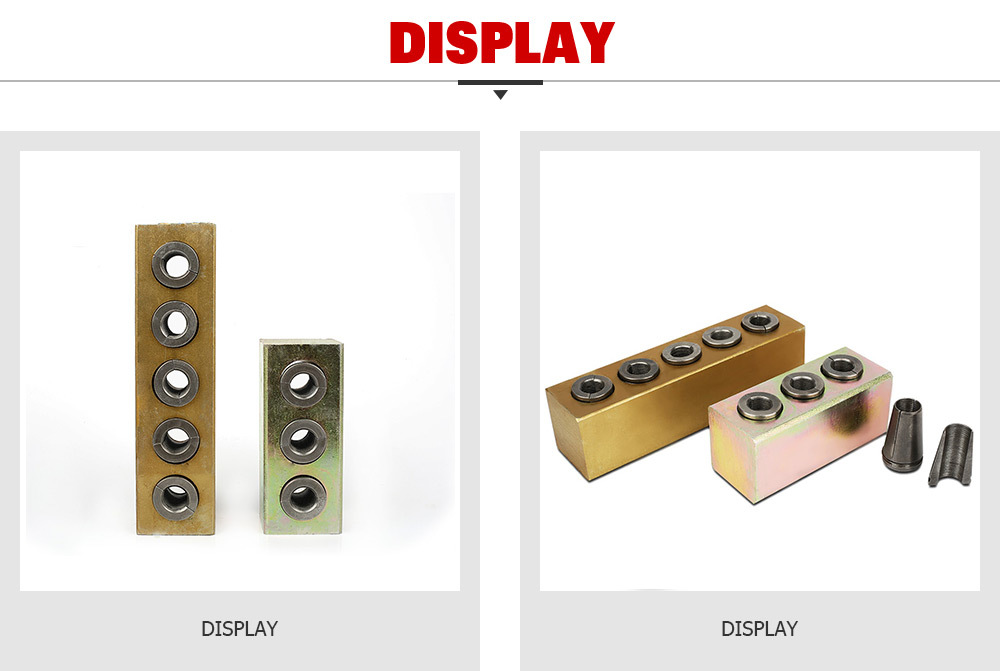

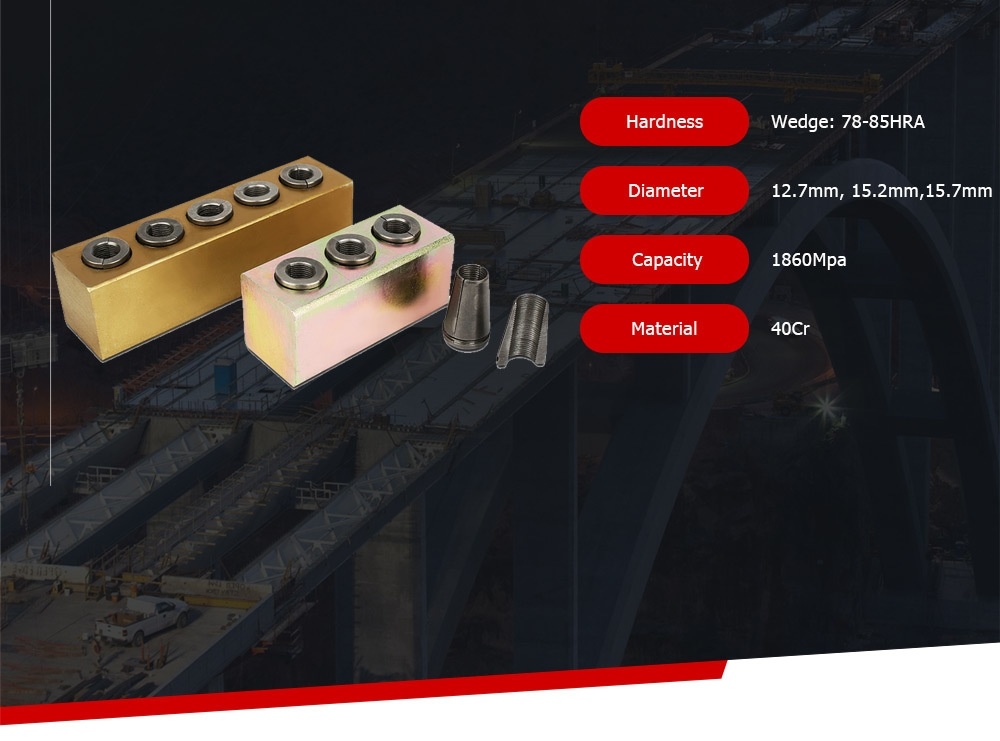

The shape of the anchor head is flat. The layout of the prestressing tendons are usually horizontal and parallel. The BM stressing flat anchorage is applied for strands of 12.7mm, 15.2mm and 17.8mm.
It gets rid of the disadvantages of the over-concentrated prestress and large sizes in two directions of the group anchorages. The distribution of the prestress is more reasonable. The thickness of the anchor head can be thinner. It is usually applied in hogging moment such as the horizontal prestress of the floor of the buildings and bridges and simple support continuous girder.
| Specification | Flat Anchor Head | Flat Casting Plate | Duct | Spiral Reinforcement | |||||||||
| A | B | C | D | E | F | G | H | J | N | K | ФІ | n | |
| BM13-2 | 70 | 42 | 45 | 120 | 60 | 100 | 47 | 19 | 120 | 70 | 40 | 6 | 4 |
| BM13-3 | 97 | 42 | 45 | 150 | 60 | 120 | 52 | 19 | 150 | 70 | 40 | 6 | 4 |
| BM13-4 | 125 | 42 | 45 | 180 | 60 | 140 | 67 | 19 | 190 | 70 | 40 | 6 | 4 |
| BM13-5 | 153 | 42 | 45 | 215 | 60 | 170 | 76 | 19 | 220 | 70 | 40 | 6 | 4 |
| BM15-2 | 78 | 46 | 48 | 140 | 70 | 110 | 52 | 22 | 140 | 80 | 40 | 8 | 4 |
| BM15-3 | 111 | 46 | 48 | 175 | 70 | 130 | 65 | 22 | 180 | 80 | 40 | 8 | 4 |
| BM15-4 | 144 | 46 | 48 | 215 | 70 | 160 | 74 | 22 | 220 | 80 | 50 | 8 | 5 |
| BM15-5 | 177 | 46 | 48 | 255 | 70 | 180 | 90 | 22 | 260 | 80 | 50 | 8 | 5 |
