Arc Flat Anchorage
Category:
Prestressed Anchor & Wedge
Keywords：
arc
anchoring
strand
graphite
Description

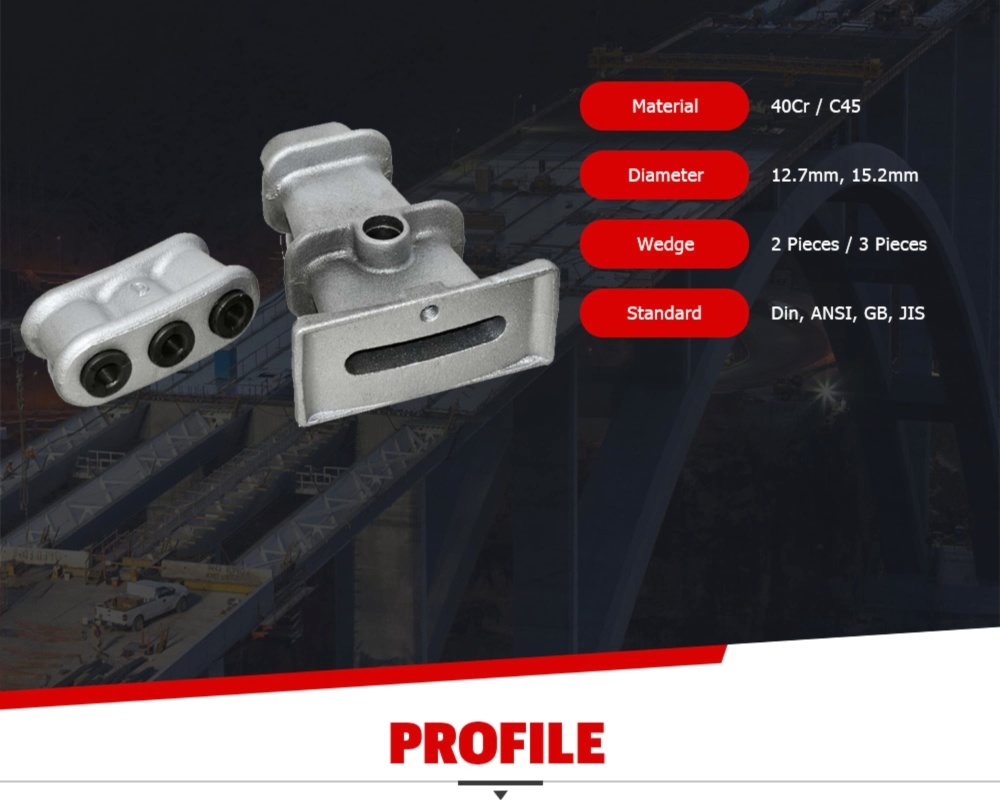

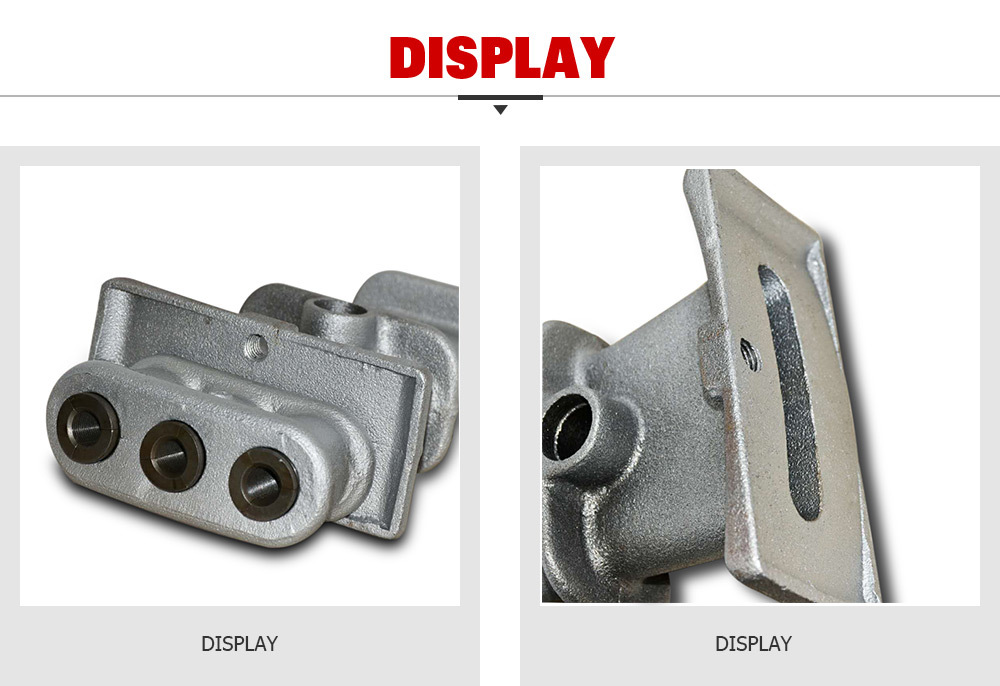

The anchoring system of spheroidal graphite cast iron integrated anchor is designed for unbonded PC strand based on the application of PC strand anchorage in recent 20 years in China.Its feature is that the anchorage at the tension end adopts the spheroidal graphite to integrate the bearing plate and anchor head.It has compact structure and reliable anchoring, Its performance meets the national requirements of GB/t14370-2000, and it is also applicable to 2000MPa PC strand.In addition, the biggest advantage of the anchoring system is that the full length of PC strand can be fully sealed.
| Specifications | ||||||||
| PC strand Dia | 12.7mm(0.5 inch) | 15.2mm(0.6 inch) | ||||||
| Strand quantity | 2 | 3 | 4 | 5 | 2 | 3 | 4 | 5 |
| Anchor head model | DF205 | DF305 | DF405 | DF505 | DF206 | DF306 | DF406 | DF506 |
| Ultimate tensile force per strand(KN) | 368 | 552 | 736 | 920 | 520 | 780 | 1040 | 1300 |
| Stressing force at 0.8 U.T.S.(KN) | 294 | 442 | 589 | 736 | 416 | 624 | 832 | 1040 |
| Flat duct inside dimension(mm) | 50x19 | 60x19 | 70x19 | 90x19 | 50x19 | 60x19 | 70x19 | 90x19 |
| Hydraulic model | YDC250 | |||||||
More than 20 years of rich experience
in the productiong technology of Prestressed industry
DAFANG Prestressed is a professional manufacturer and a Supplier engaged in research, development, production, sale, and service of hydraulic tension jack, hydraulic oil pump, post-tension anchorage, pc strand, and intelligent tension systems.
DAFANG Prestressed is dedicated to strict quality control and thoughtful customer service, experienced specialists are always available to discuss your requirements and ensure full customer satisfaction.
In recent years, DAFANG Prestressed has added a series of advanced equipment including CNC machine tool, CNC rocker drill, CNC drilling machine, and CNC cutting machine.
All products are selling well in both domestic and abroad. Products have been exported to clients in many countries and regions such as Cambodia, Malaysia, Philippines, Dubai, and Colombia.
