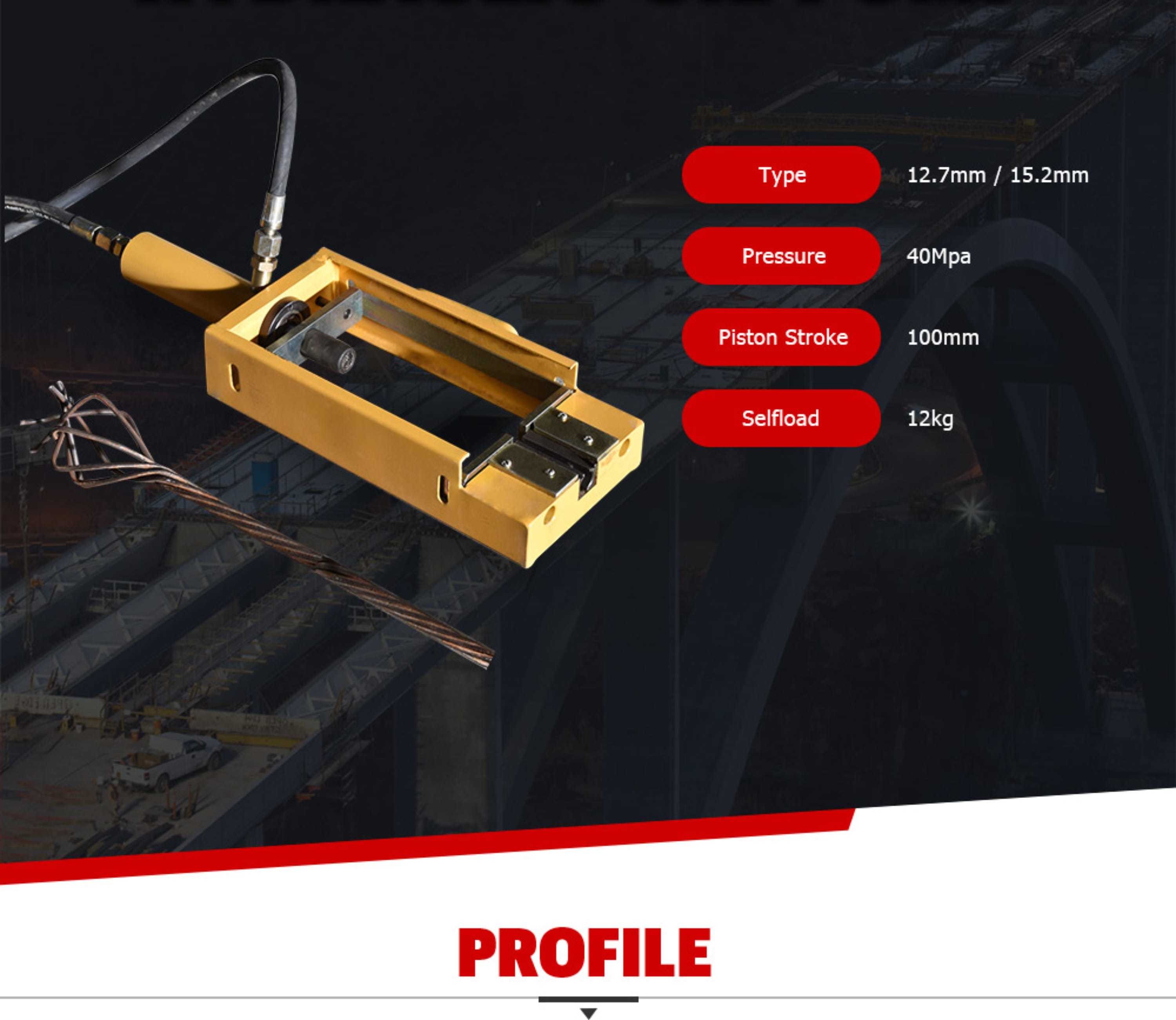

Type: 12.7mm / 15.2mm Pressure: 40Mpa Piston Stroke: 100mm Selfload: 12kg Nom. Tensile: 40KN Size: 530 * 200 * 200mm

WhatsApp：+8615093660266

Keywords：

strand

splint

pressure

head

oil

Message

Contact

Description

Onion Jack

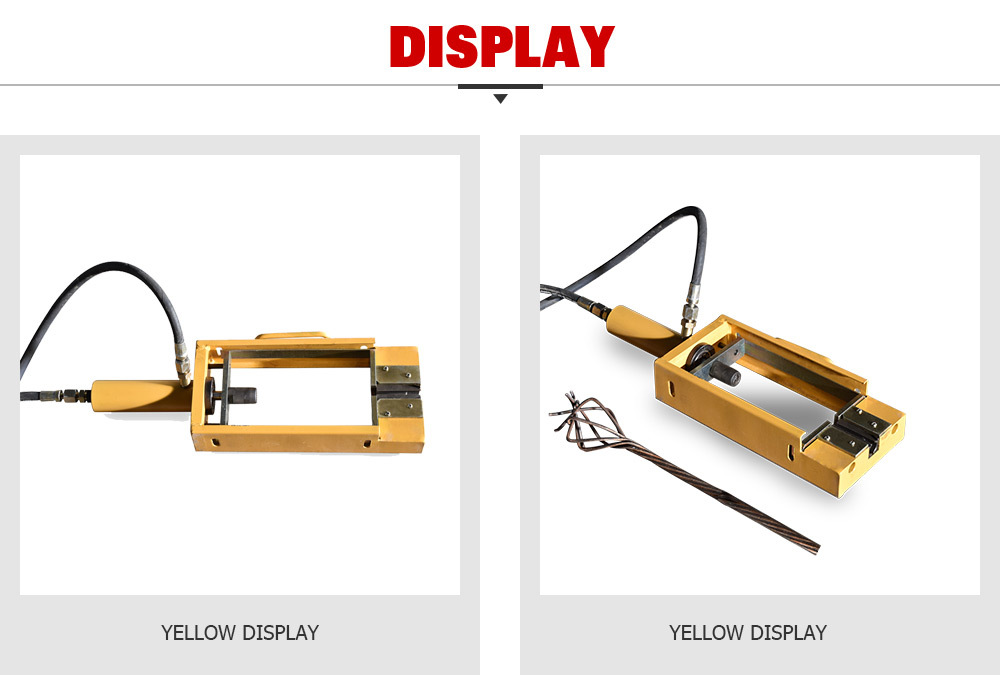

The improved YH3 embossing machine is mainly used to press the fixed end of the prestressed steel strand into a pear-shaped flower-like shape, with mesh, spiral reinforcement or stirrups, and other structural reinforcement, and form a self-anchor anchor head by holding, squeezing, and anchoring between the embossing part of the steel strand and the concrete. This saves the anchor at the fixed end. As long as the splint of the clamping steel strand is replaced, it can also be used in other specifications.

Rated Oil Pressure	50MPa	Nominal Top Pressure	19.9KN
Area Of Tension Piston	0.071 x10-2m2	Oil Pump	≤50MPa
Return Piston Area	0.045 X10-2m2	Type Of Oil	46# Hydraulic Oil
Stressing Head	100 mm	Weight	15 kg
Return Trip	Hydraulic Pressure	Dimensions	630 * 200 * 86mm
Compression Diameter	Φ80 * 130

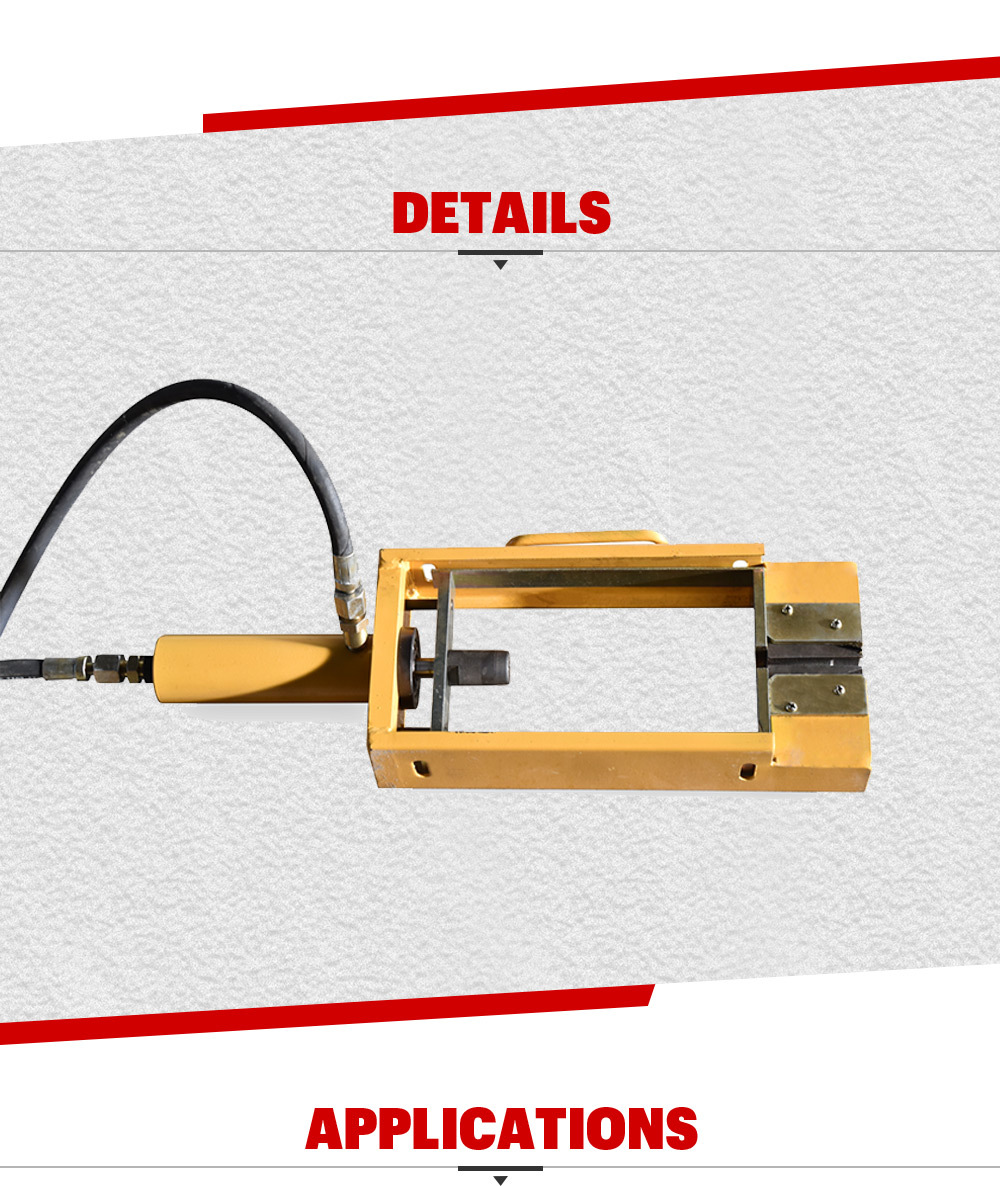

This machine is mainly composed of a hydraulic jack, head, frame, splint holding steel strand, and a set of loose clamp mechanisms. The working principle is shown in figure 2. The steel strand is inserted into the top pressure head splint by the spring elastic force. When the hydraulic cylinder enters the oil, the piston moves and the top pressure head moves with the head of the steel strand. At the same time, the steel strand splint clamps the steel strand by slope, and the splint clamps the steel strand by a slope as the piston moves. In this way, when the piston moves in place, the steel strand between the clamping part of the splint and the top pressure head will be pressed into a pear-shaped flower shape, and then the piston return journey will pull the loose clamping mechanism to drive the splint out, and the steel strand can be taken out. The embossing is finished.

Serial Number	Name of name	Specifications	Quantity	Material	Remarks
1	Press machine	YH3B	Quantity	Material	Remarks
2	Instruction Manual		1
3	Yx sealing ring	D30	2 pieces	Polyurethane	Spare parts
4	Dustproof ring	D18	1 piece	Polyurethane	Spare parts
5	O sealing ring	18X2.65G	1 piece	Oil resistant rubber	Spare parts
6	O sealing ring	Φ30 * 3.1	2 pieces	Oil resistant rubber	Spare parts
7	Gasket	Φ13 * φ7 * 2	3 pieces	Copper	Spare parts
8	High pressure hose	G6III φ6*3000	2	Components	Annex
